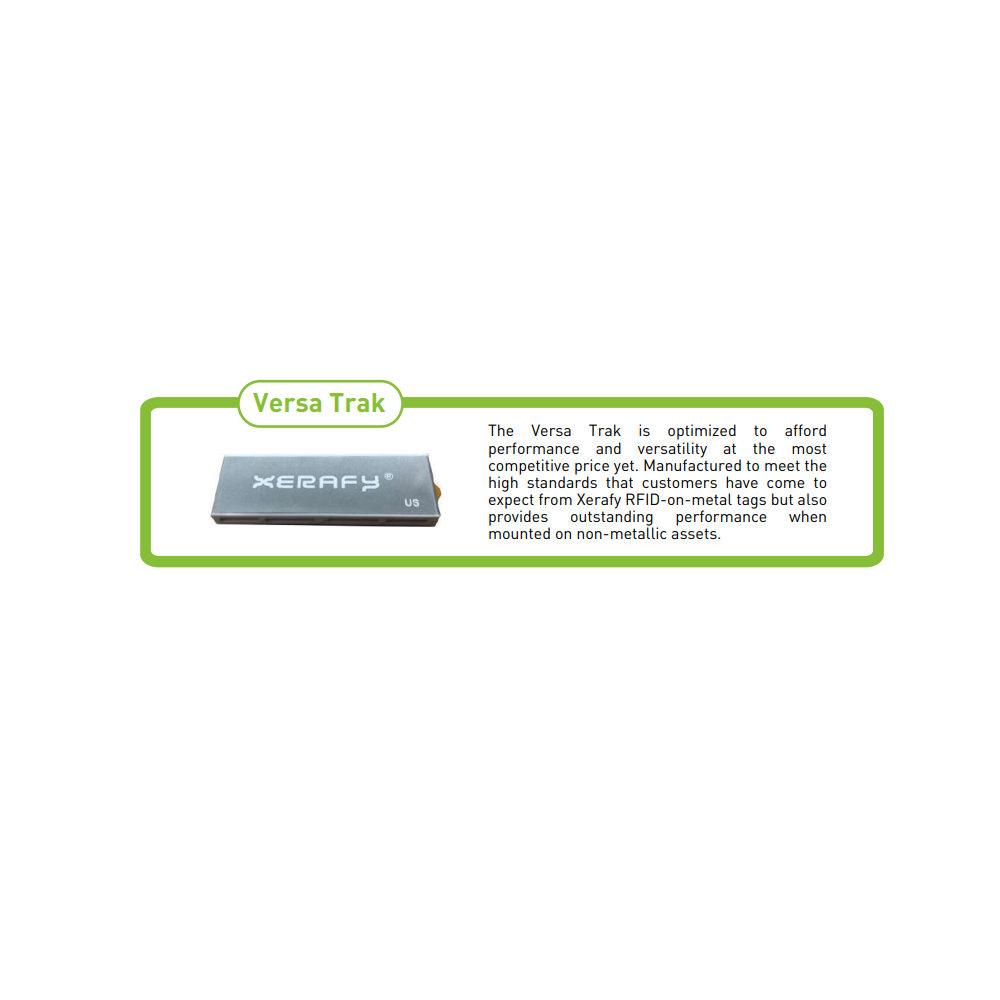

UHF RFID Tags are designed to meet the high standards of Xerafy metal RFID tags and offer excellent performance when mounted to non-metallic assets.

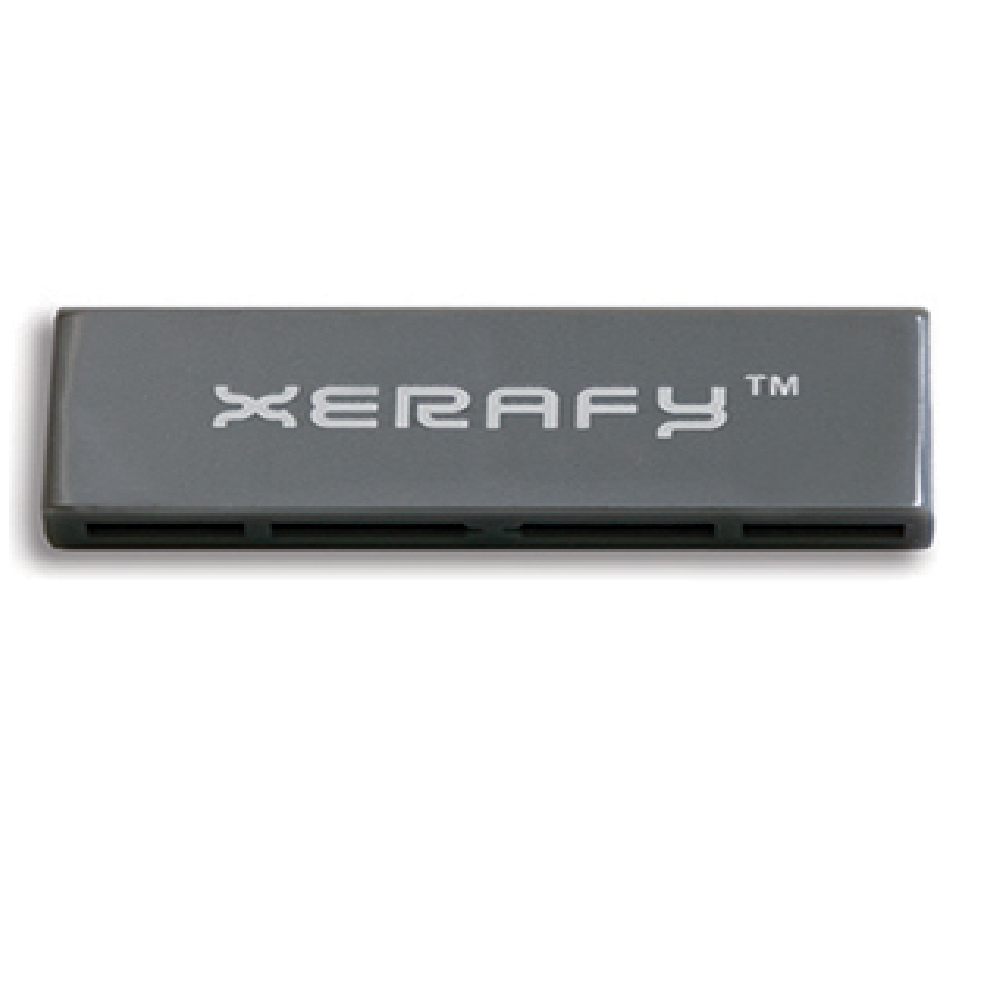

The Versa Trak Tag is a robust RFID Tag suitable for RTI management and pallet tracking applications, it is a small embeddable metal on/off RFID tag, provides powerful read ranges up to 8 m (26 ft) on metallic surfaces.

This Metal RFID Tag is designed to provide performance and versatility at a low cost.

ELECTRICAL:
- Air Interface Protocol:EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
- Operating Frequency:FCC (902-928 MHz), ETSI (866-868 MHz)
- IC Type:Alien Higgs-3
- Memory:EPC 96 bits, User 512 bits, TID 64 bits
- EPC Memory Content:Unique, randomized number
- Max Read Distance (On-Metal):Up to 8 m (26 ft)
- Max Read Distance (Off-Metal):Up to 4 m (13 ft)
- Applicable Surface Materials:Metallic and non-metallic surfaces

MECHANICAL:
- Tag Form Factor:Hard tag
- Tag Materials:Industry grade polymer
- Attachment Method:High performance adhesive

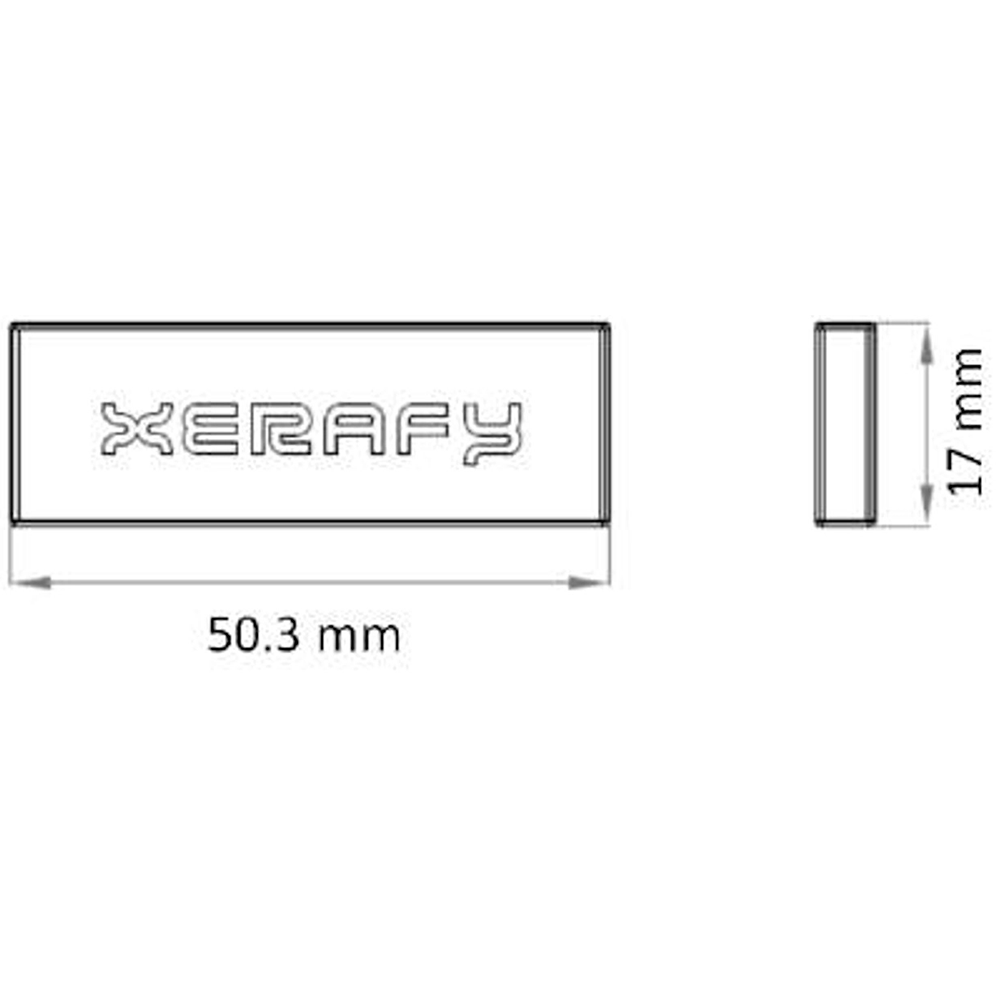

- Dimensions:50.3 x 17 x 5.3 mm (1.98 x 0.67 x 0.21 in)
- Weight:3 g

ENVIRONMENT:
- Operating Temperature:-40° to +85°C (-40° to +185°F)
