Confidex Rfid Tag Ironside Micro
Click to enlarge

Out of stock

Confidex Rfid Tag Ironside Micro

sold in last hours
Vendor: Confidex
SKU: CONFIDEX-MICRO
$7.19
Real Time 14 Visitor Right Now

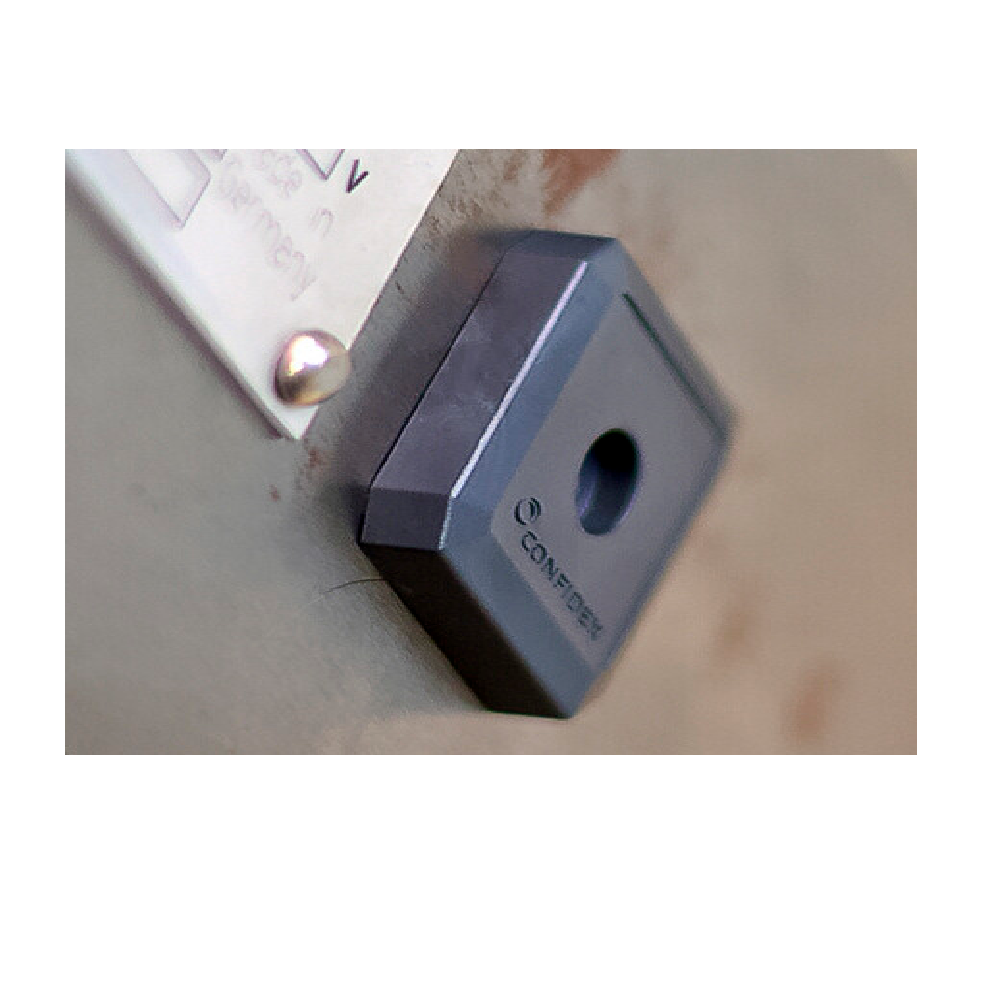

Confidex Ironside Micro is a labeling solution for reusable items and industrial assets exposed to changing weather conditions and rough handling. Square inch area metal tag for various metal asset tracking applications.

Like the industry-leading Confidex Ironside, the Ironside Micro is designed for use on metal surfaces and is proving to be extremely robust in the face of the tough demands of industrial and retail tracking applications.

Ironside Microencapsulation has a protection class of IP68 and requires only about a square inch of footprint. The total read range can be up to 5 meters with the maximum read power allowed. Ironside Micro is also available as an ANATEX compatible version.

ELECTRICAL:
- Air Interface Protocol:EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
- Operational frequency:Global (865-928MHz)
- IC type: Global:Impinj Monza 4QT™
- Memory configuration:EPC 128 bit; User 512 bit; TID 96 bit.
- EPC Memory Content:Unique, randomized number
- Max Read Distance - US:Up to 4 m (13.1 ft)
- Max Read Distance - EU:Up to 5 m (16.4 ft)
- Applicable Surface Materials:Ideal on metal, works on most materials

MECHANICAL:
- Tag materials: High quality engineering plastics.
- Tag Form Factor:Hard tag
- Weight: 4,3 g.
- Dimensions: 27 x 27 x 5,5 mm (1.06 x 1.06 x 0.22)
- Attachment Method:Acrylic adhesive, screws, rivets

ENVIRONMENTAL:
- Operating temperature: -35°C to +85°C (-31°F to +185°F)
