The TexTrack™ HS Ⅰ TLCE7010 UHF RFIF Tag, the newest member of the Century CiLink™ series for textile management.

TLCE7010 is an ultra-thin and soft label, it can be heat-sealed directly on clothing at 210℃, for 15s. Can be easily sewn in fabric with or without pouch.

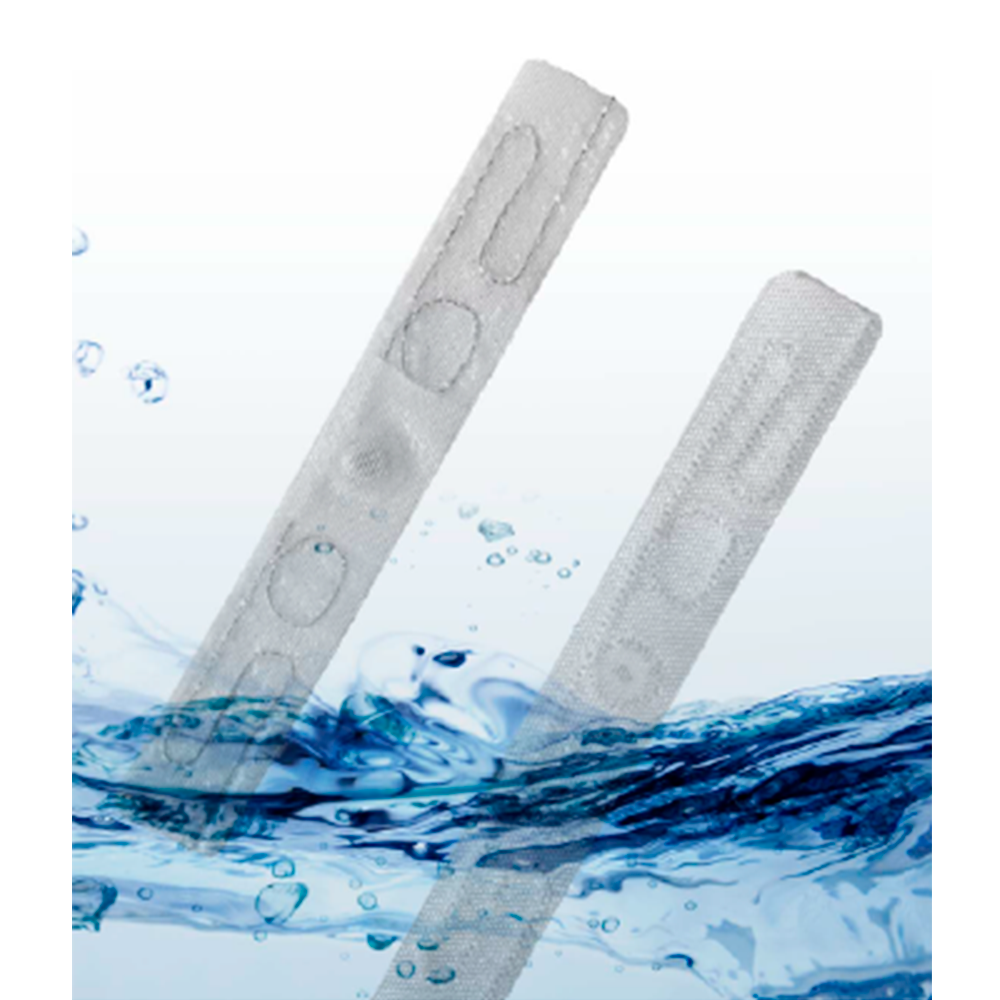

This Tag offers great performance and a cost-effective solution for laundry applications and is designed to withstand the impact of high-volume, high-pressure wash cycles.

ELECTRICAL:
- Protocol:ISO/IEC 18000-6C & EPC global Class 1 Gen 2
- Frequency:860-960MHz
- Chip:NXP U8
- EPC:128 bits
- User:0 bits
- Unique TID:48 bits
- Acess Password:32 bits

MECHANICAL:
- Size:70*10*1.7mm
- Material:Fabric

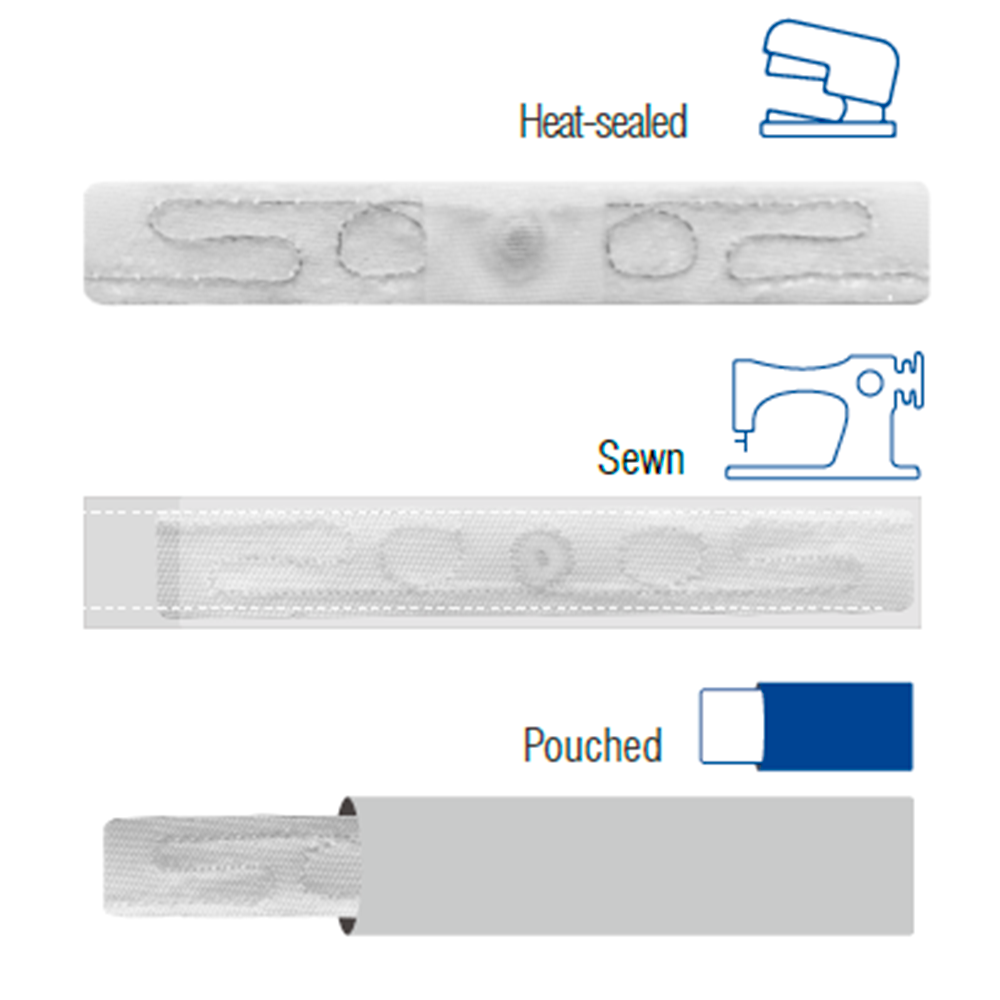

- Mounting Method:Sewn, Pouched, Heat-sealed
- Color:White
- Weight:0.4g

ENVIRONMENT:
- Storage Humidity:30% ~ 70% RH
- Storage Temperature:-20℃ ~+85℃
- ESD:≤8 KV
