TNMC8237 recessed label has optional surface material for wide application and can be applied in many kinds of industries.

These are embedded labels that are available for printing and custom sizes to suit customers with specific requirements.

The TNMC8237 UHF RFID tag makes available of pre-coding services for easy deployment according to customer need.

ELECTRICAL:
- Protocol:ISO/IEC 18000-6C & EPC global Class 1 Gen 2
- Operating Frequency:(860 - 960MHz)
- Integrated Circuit:Monza R6
- EPC Memory:96Bits
- User Memory:0Bits
- Unique TID:48Bits
- Access Password:32 Bits
- Kill Password:32 Bits

MECHANICAL:

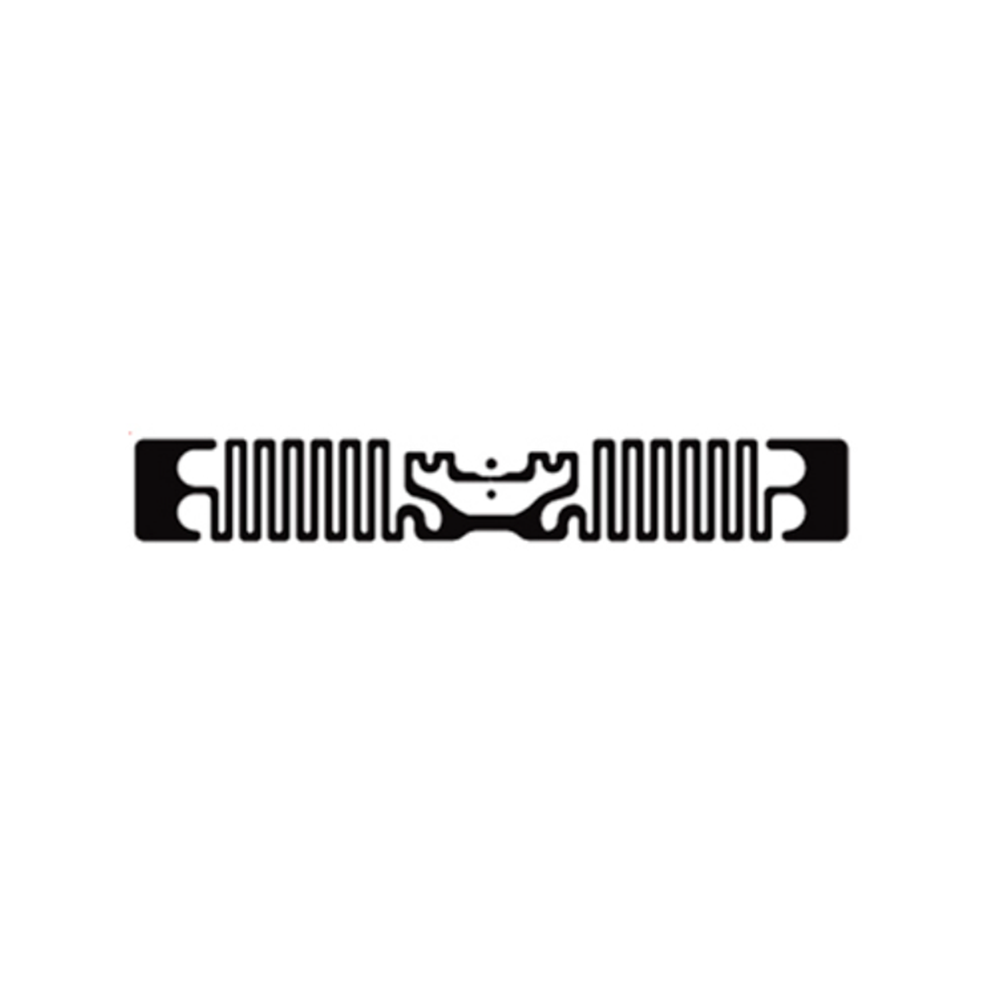

- Antenna Size (mm/in):70×10mm(2.76×0.39in)
- Die-cut Size (mm/in):73.2×17mm(2.87×0.67in) 82.5×37mm(3.25×1.46in
- Antenna substrate material:Aluminun
- Liner material:PET

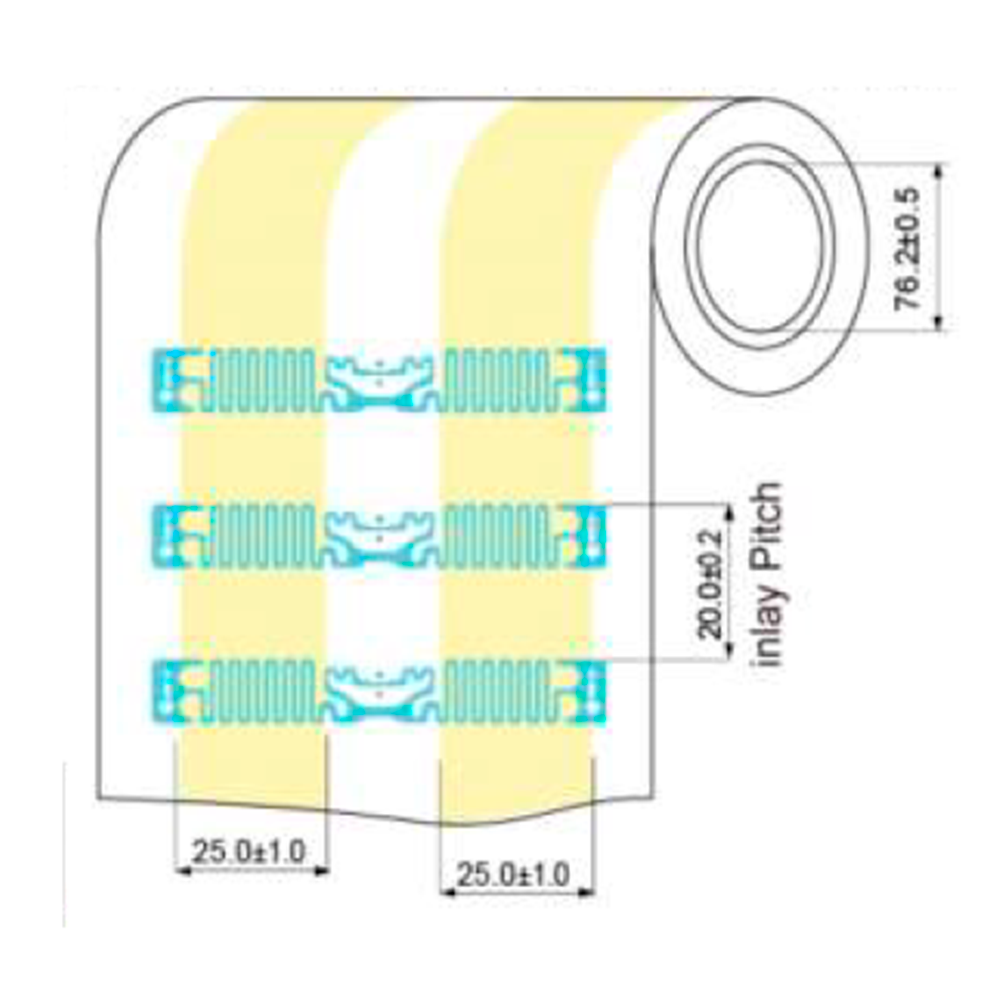

- Standard pitch:20mm(0.79in)
- Standard web widths:85mm(3.35in)

ENVIRONMENT:
- Operating Temperature:-20℃~60℃
- Operating Humidity:30%~70%
- Storage Temperature:-20℃~60℃
- Storage Humidity:30%~70%
- ESD:≤2KV
