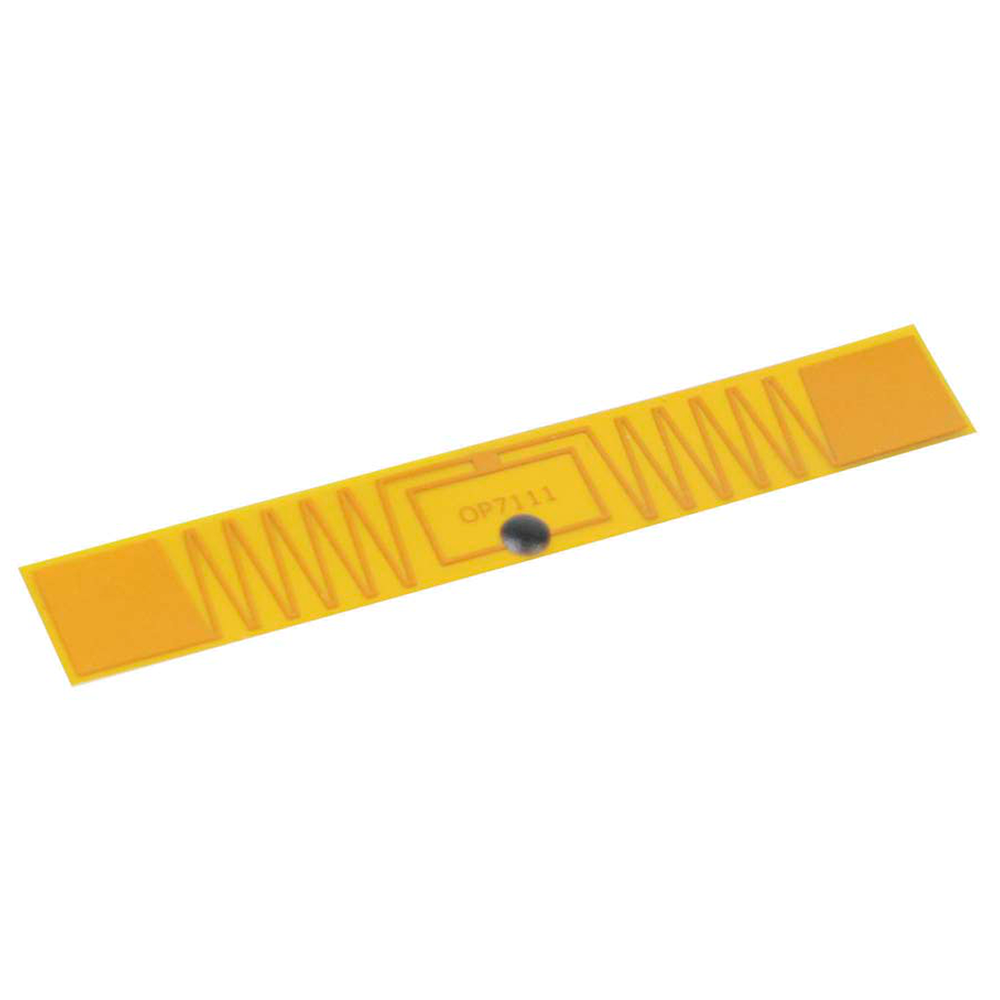

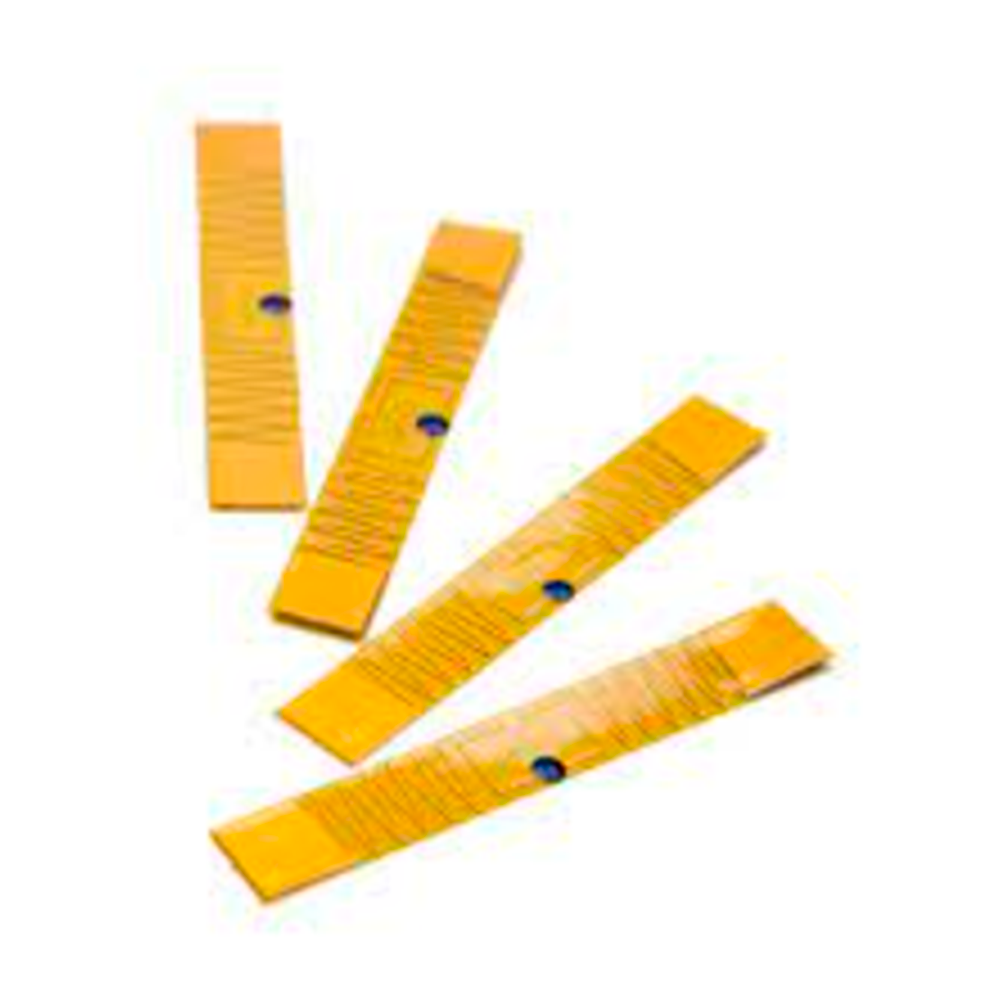

TMOP7111 is a high temperature FPC UHF inlay label.

The UHF RFID Tag is specifically designed to provide an extremely long read range of up to 9.0 meters and high temperature resistance of 200 degrees.

This is a high temperature resistant, thin, small, light and widely used flexible printed circuit robust RFID tag for industrial equipment, industrial laundry system with high temperature resistance.

ELECTRICAL:
- RFID Protocol:EPC Class1 Gen2, ISO18000-6C
- Frequency:Golbal 840Mhz to 960Mhz
- IC type:Alien Higgs-3
- Memory:EPC 96bits (Up to 480bits) , USER 512bits, TID64bits
- Write Cycles:100,000times
- Functionality:Read/write
- Data Retention:Up to 50 Years
- Applicable Surface:non Metal Surfaces

MECHANICAL:
- Size:71x11mm
- Thickness:0.13mm
- Material:FPC
- Weight:0.2g

ENVIRONMENT:
- IP Rating:IP68
- Storage Temperature:-40°C to +200°C
- Operation Temperature:-40°C to +100°C
- Certifications:Reach Approved,RoHS Approved,CE Approved
