Omni-ID Rfid Tag Flex 600 Shell
Click to enlarge

Out of stock

Omni-ID Rfid Tag Flex 600 Shell

sold in last hours
Vendor: Omni-ID
SKU: OMNI-Flex 600 Shell
$1.00
Real Time 19 Visitor Right Now

Categories: Rugged Rfid Tags,

Product Type: Tag

Barcode:

Tags:

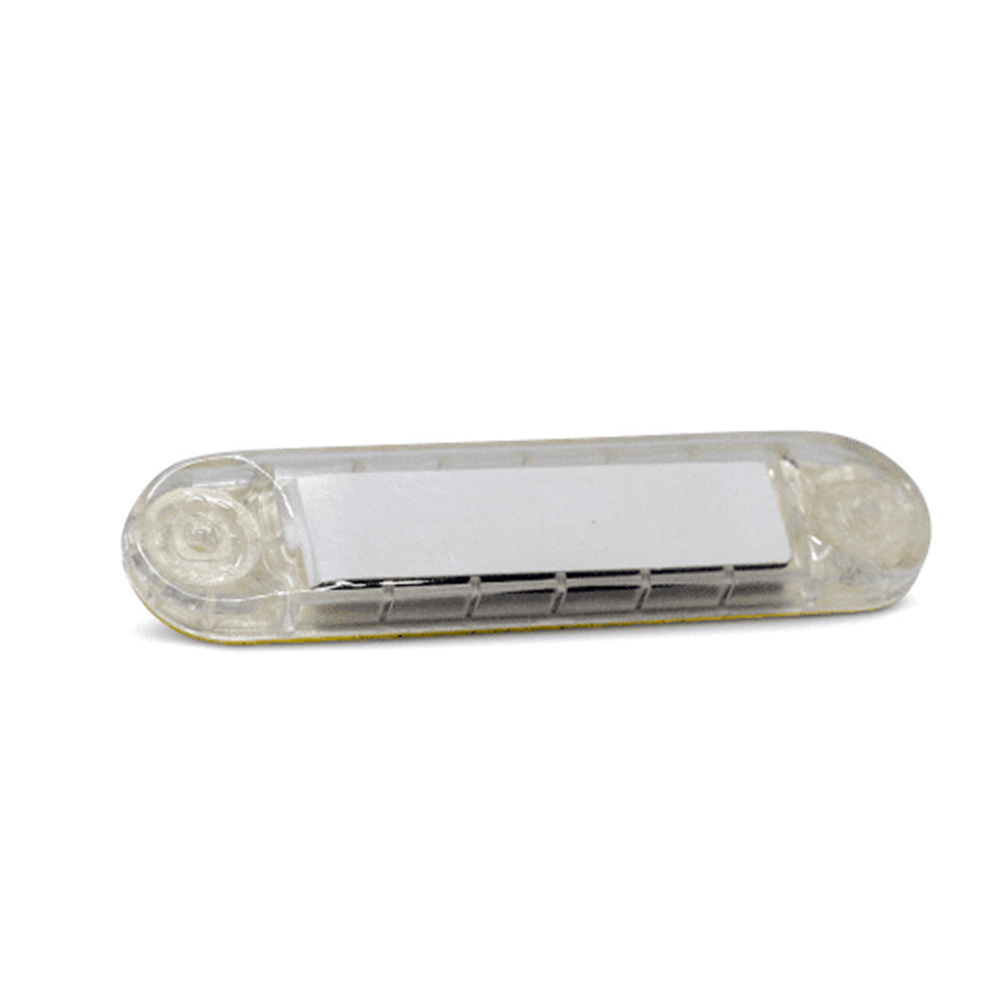

The Flex 600 Shell places a hard, clear case on top of the Flex label to provide some protection from knocks, spills, or other environmental factors.

The transparent case is ideal for protecting the information printed on the label and at the same time making it readable to the human eye and without any change in reading performance.

The RFID tag is a low profile, small form factor, designed for attaching to office equipment, IT assets or RTIs. This Tag excels in portal application where the read range can be expanded up to 25% due to its superior RF performance.

ELECTRICAL:
- Radio Protocol:EPC Class 1 Gen2v2
- Frequency Range:866 – 868 MHz (EU) 902 – 928 MHz (US)
- Read Range – Fixed Reader:Up to 7.5m (24.6 feet)
- Read Range:Handheld Reader
- On Metal or Balanced:Optimized for metal
- Material Compatibility:Metal
- IC Type (Chip):Monza R6-P
- Memory:EPC:128 bits User:32 bits Unique TID:
- TSL1166 Specific:Maximum tag to cone open end distance:Minimum distance between tags whereby reader will only detect desired tag:Recommended read power:Recommended write power:

MECHANICAL:
- Construction / Finish / Material / Encasement:White synthetic label in encasing

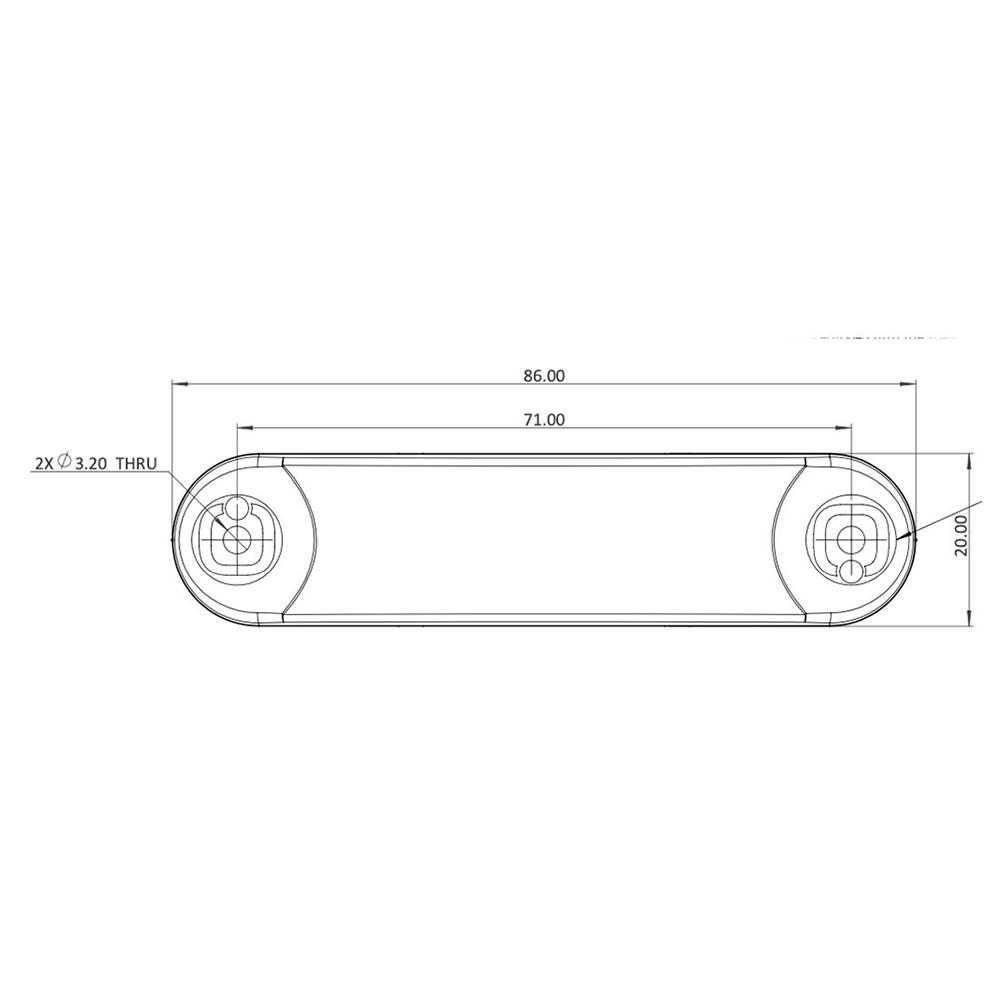

- Size (mm):86 x 20 x 6.75
- Size (in):3.38 x 0.78 x 0.26
- Weight:(g)7.12
- Dimensiones:86 x 20 x 6.75mm // 3.38 x 0.78 x 0.26 in
- Attachment:Mechanical (Std), Foam adhesive (Std)

ENVIRONMENT:
- Operating Temperature:–30°C to +65°C
- Max Temperature Exposure:Long term: Short term: Range:
- IP Rating:IP68
- Impact:1KG
