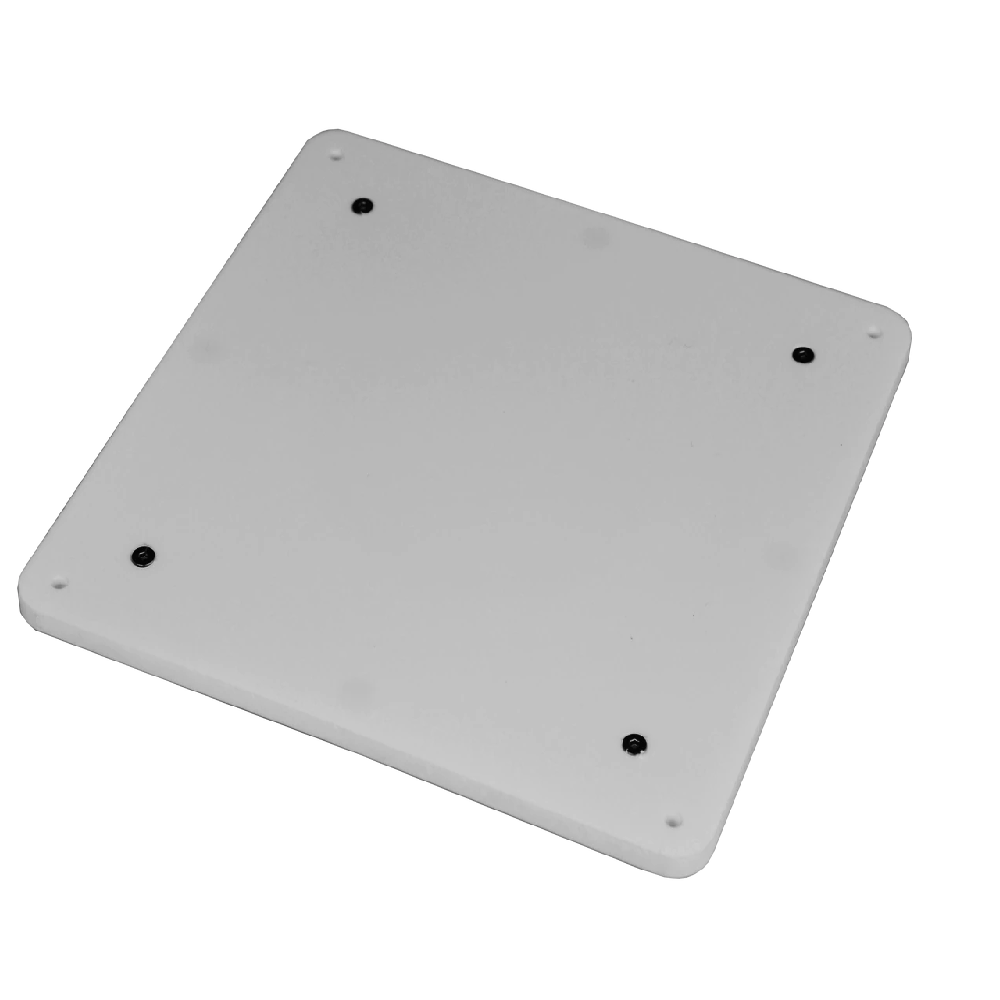

The Advantenna-CP11 UHF RFID Antenna is a compact circular polarization UHF RFID antenna with a highly controlled reading area, it works as a near-field antenna or as a longer-range antenna due to its RFID Reader power control.

The RFID Antenna if working as near field, the reading area can be adjusted to a few centimeters even with far field tags.

The RFID Antenna can be mounted under the surface of a shelf, table, to create RFID applications such as payment systems and is an excellent choice for point of sale, check-in systems, access control, smart shelves, smart displays, smart panels and smart tables.

ELECTRICAL:
- Operating Frequency:FCC (902-928 MHz), ETSI (865-868 MHz)
- Polarization:Circular
- Gain:0.2 dBi
- Max Read Distance:Up to 3 m (9.8 ft) - In High Power Mode
- Elevation Beamwidth:120˚
- Azimuth Beamwidth:120˚

MECHANICAL:
- Connector Type:SMA female (connects to SMA male)
- Cable:Not Included
- Mounting:Integrated Mounting Holes
- Dimensions - excluding connector:180 x 180 x 17.5 mm (7 x 7 x 0.7 in)
- Weight:0.49 kg (1.07 lbs)

ENVIRONMENT:
- IP Rating:IP 64
- Operating Temperature:-20˚C to +130˚C (-4˚F to +266˚F)
