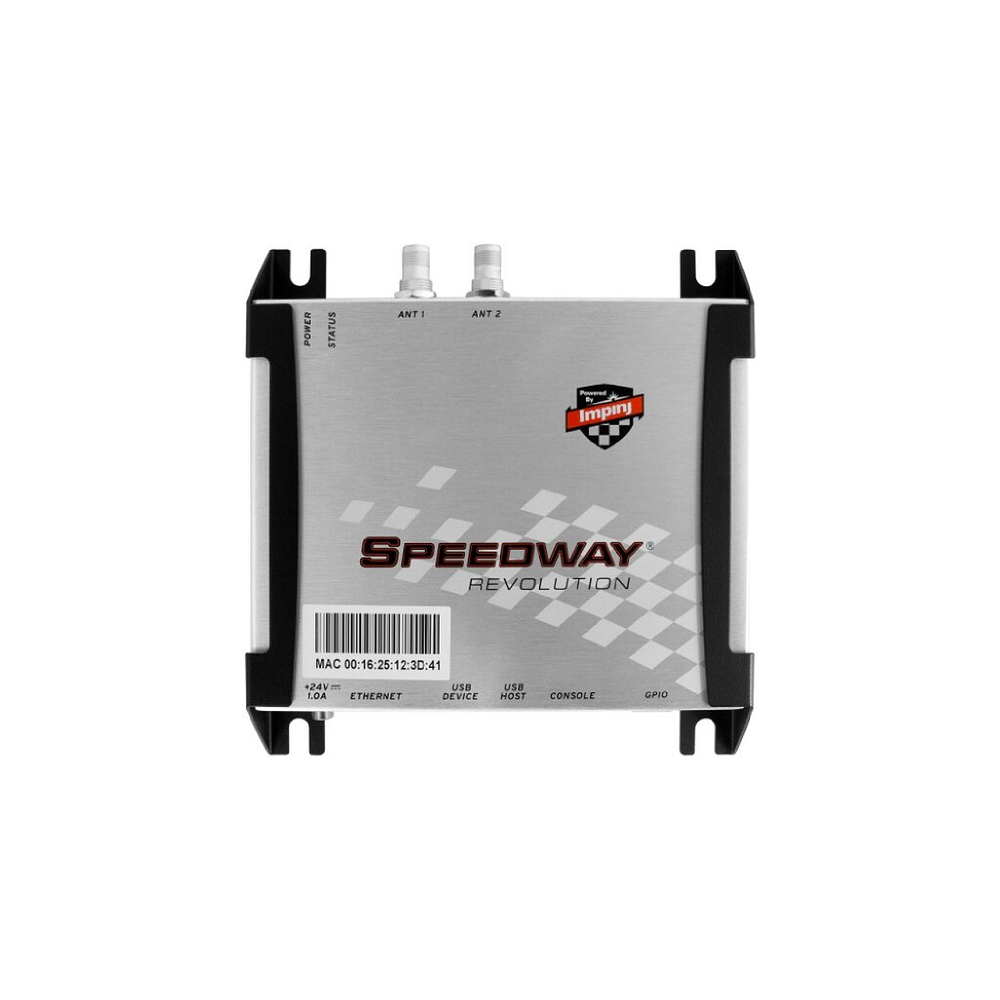

Impinj Rfid Reader UHF Speedway Revolution R220 (2 Port)
Click to enlarge

Out of stock

Impinj Rfid Reader UHF Speedway Revolution R220 (2 Port)

sold in last hours
Vendor: Impinj
SKU: IMPINJ-Speed_R220
Real Time 24 Visitor Right Now

Categories: Fixed Rfid Readers, RFID Readers,

Product Type: Fixed Reader

Barcode: -


The Speedway Revolution R220 Fixed UHF Reader is one of the most demanded on the market, designed for high performance and efficiency, it was created for those looking for high quality, value and usability.

The RFID Reader has great performance and quality for maximum visibility of inventory and tagged assets. Its capability is for high read rates regardless of noise or RF interference.

The Speedway R220 Reader is supported by a suite of software, hardware and antennas that provide application and deployment flexibility, making installation easier.

- Air Interface Protocol: GS1/EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
- Operating Frequency: UHF (860- 960 MHz), region dependent
- Transmit Power (POE): +10.0 to +31.5 dBm (EU1 limited to +30 dBm)
- Transmit Power (External DC Power): +10.0 to +32.5 dBm (Listed/Certified power supply) (EU1 limited to +31.5 dBm, JP2 limited to 30 dBm)
- Max Receive Sensitivity: -84 dBm
- Max Read Distance: Not published
- Max Read Rate: Up to 200 tag reads per second

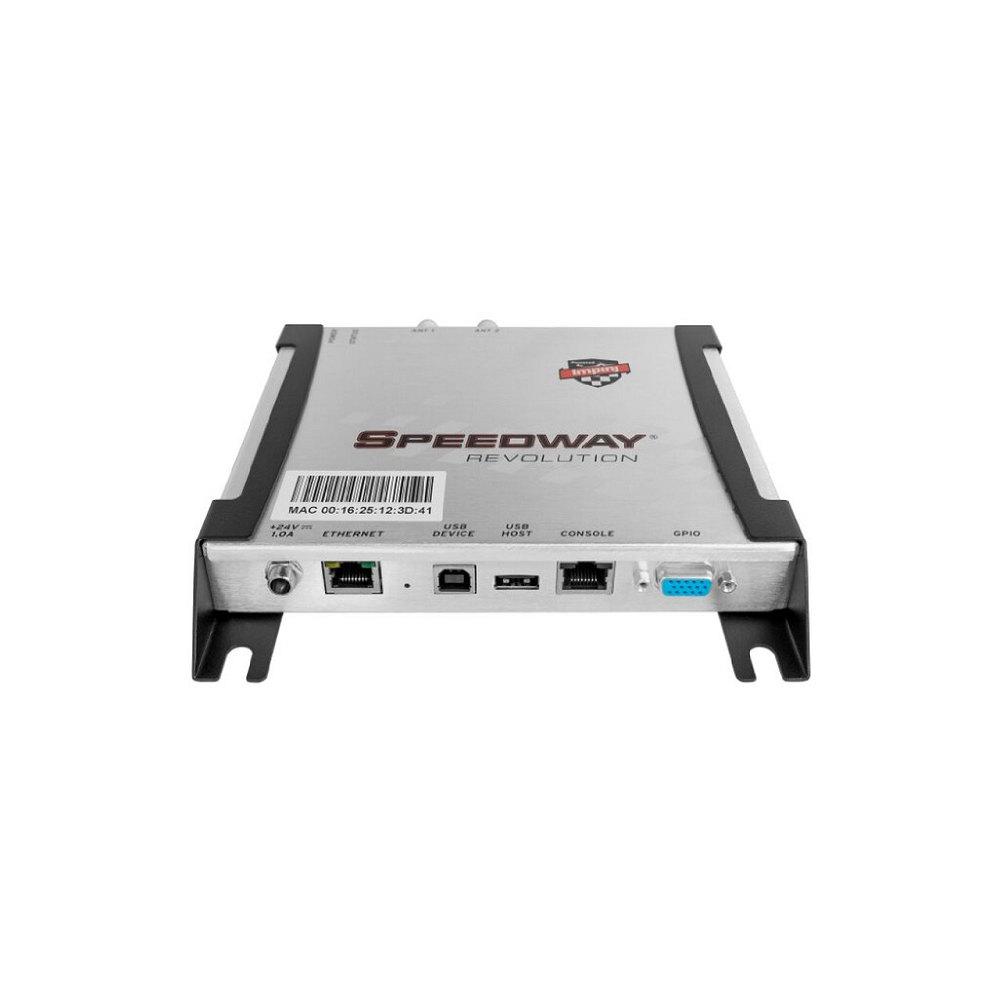

- Data Interface: RS-232, ethernet
- GPIO: 4 GPI optically isolated 3-30V/ 4 GPO optically isolated, 0-30V, non-isolated 5V, 100mA supply (DB-15)
- Power Source (POE): IEEE 802.3af
- Power Source (Power Adapter): Listed/Certified power supply, AC-DC power supply rated for 24Vdc/2.1A

- Antenna Ports: 2 RP-TNC female ports (connects to RP-TNC male), monostatic
- Dimensions: 190.5 x 175.3 x 30.5 mm (7.5 x 6.9 x 1.2 in)
- Weight: 0.7 kg (1.5 lbs)

- IP Rating: IP 52
- Operating Temperature: -20 ºC to +50 ºC (-4 ºF to +122 ºF)
